Mistello FG-700 High Pressure Misting Pump

The Mistello FG-700 is the flagship high pressure misting pump in the Mistello lineup, engineered for large-scale industrial cooling, dust suppression, and demanding commercial applications. Built around a robust 3-piston crank pump and a powerful 1200W DC brushless motor (1600 RPM), this high pressure misting pump delivers an industry-leading 7.0 L/min water flow at up to 70 Bar / 1000 PSI, covering an impressive 250–600 m².

The system offers full Phone App and remote key control, giving you complete remote access to spray cycles and settings from anywhere. With a 140-metre maximum hose length and a factory-standard 120-nozzle package, the FG-700 is designed for the biggest cooling jobs — from industrial warehouses to large agricultural and commercial sites.

Key Features:

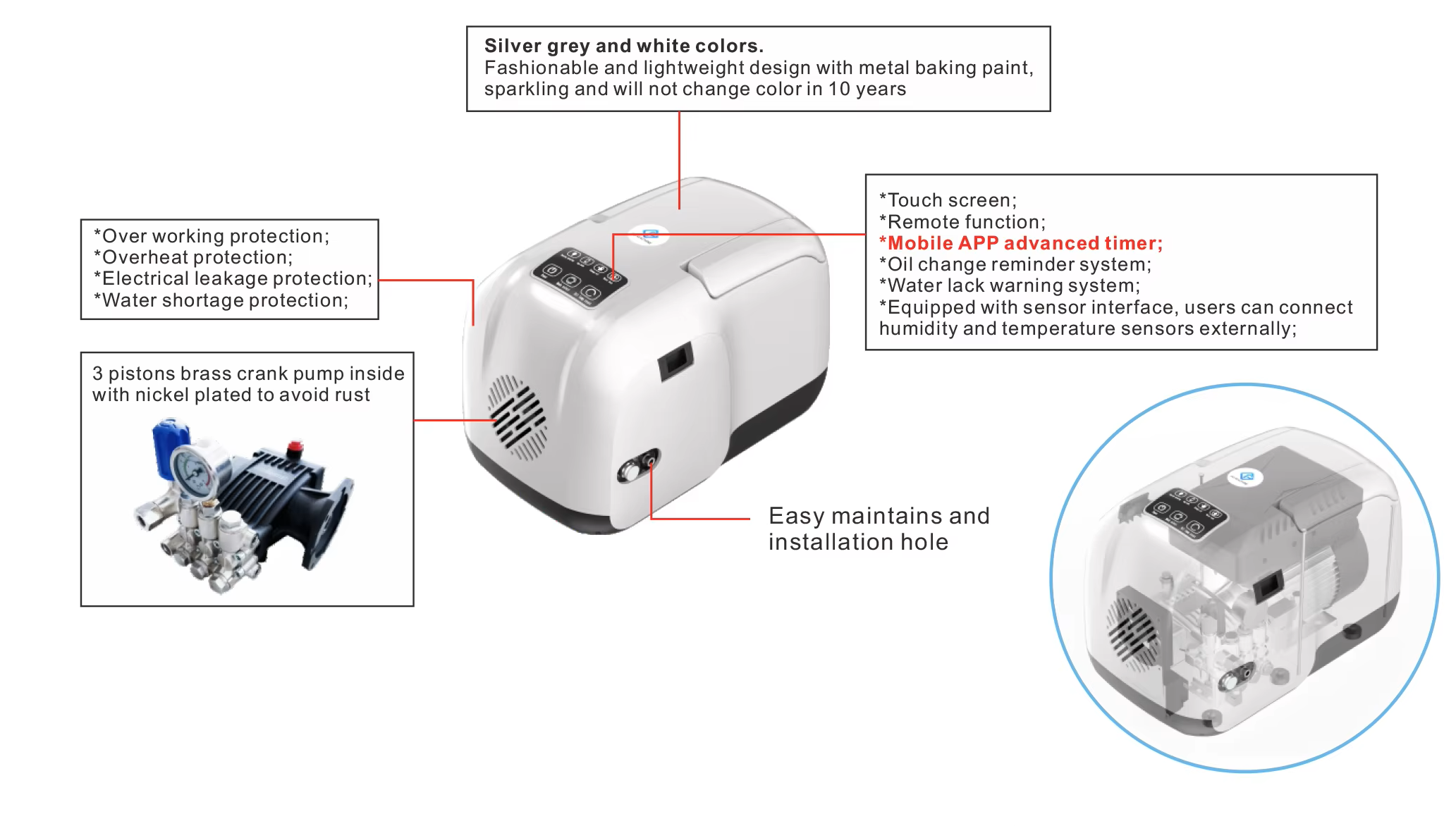

• Flagship 3-piston crank pump with 1200W DC brushless motor (1600 RPM)
• Max pressure: 70 Bar / 1000 PSI | Water flow: 7.0 L/min
• Phone App and remote key control
• Covers 250–600 m² depending on nozzle setup
• Hose length up to 140 metres
• 120 anti-drip mist nozzles (0.20mm orifice) included as standard
• Maintenance interval: 1,000–1,500 hours
• Operating noise: 68 dB at full pressure
• Multi-purpose: misting, cooling, irrigation, and disinfection applications
• Compatible with water for a wide range of uses

Power Supply: 110/220V, 50-60Hz — compatible with South African power standards.

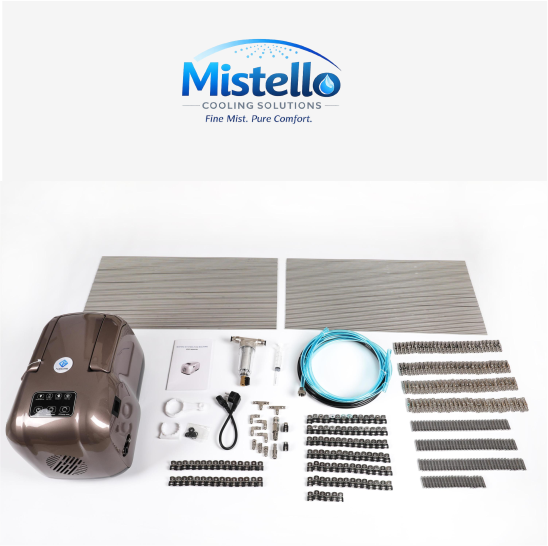

What’s in the Box:

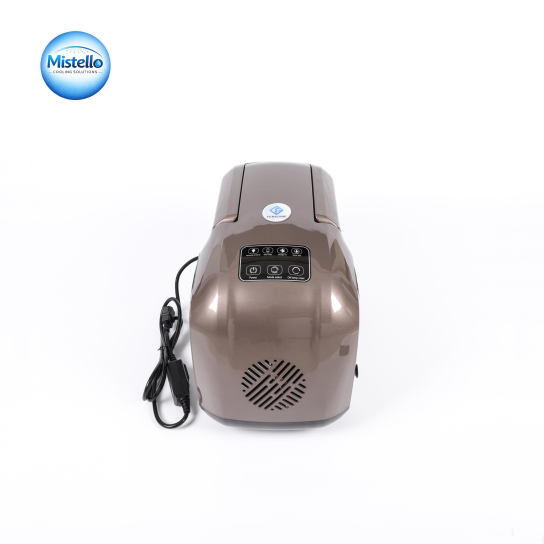

• 1 × Main pump unit (DC Smart motor, crank pump with nickel plating, glass IP67 touch screen, Mobile App control (11 languages), 8 MPa solenoid valve, water-lacking warning + auto stop, German-imported seals)
• 1 × Inlet water system (14mm×10mm polyether pipe, 1.5m + machine/filter connectors)
• 1 × High-quality SS304 water filter
• 1 × 100% brass nickel-plated filter head
• 1 × Secondary inlet pipe (12mm×10mm polyether, 1.5m + faucet connectors)
• 120 × Anti-drip mist nozzles (SS304 filter, Viton seals, 0.20mm orifice)
• 1 × Hydraulic quick fitting (3/8″, connects machine to PA pipe)
• 5 metres × Nylon (PA) pipe (3/8″, max 80 Bar, 9.52mm×4.2mm)
• 2 × Pipe hangers (3/8″ SS304 + natural rubber)
• 1 × Reducer fitting (3/8″ to 1/4″, brass nickel-plated)
• 119 × SS304 pipe sections (1/4″, 250 Bar/3600 PSI rated, 75cm length, chamfered/grooved/polished)
• 120 × Pipe hangers (1/4″ SS304 + natural rubber)
• 119 × Quick fittings (1/4″, brass nickel-plated)
• 3 × End fittings (1/4″, brass nickel-plated)
• 4 × L-type fittings (1/4″, brass nickel-plated)
• 1 × Tee-type fitting (1/4″, brass nickel-plated)
• 1 × Pump oil syringe
• 1 × User manual (full-colour printed, plastic film cover)
• 1 set × O-rings (free, for emergency leakage repair)
• 1 × Carton package (very strong, no logo, rated to 80kg)

Optional Upgrades Available:

• SS304 pipe full set upgrade — more durable, better pressure retention over longer distances than standard Nylon pipe, and works out cheaper and easier to install for large systems
• Low-pressure solenoid valve add-on
• Remote key control

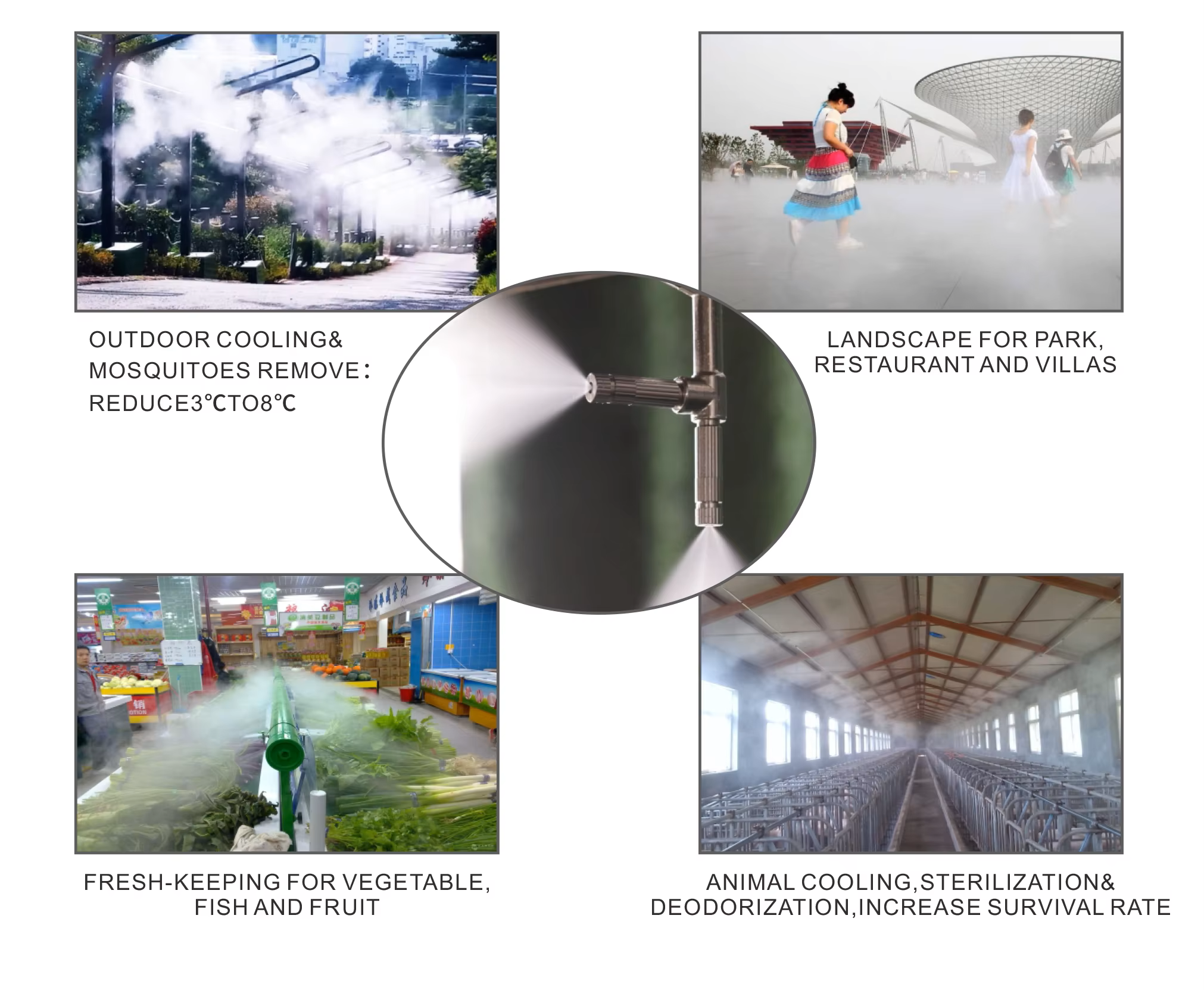

Ideal Applications:
Industrial warehouses and factories, large-scale agricultural and farm cooling, commercial dust suppression, disinfection systems, large outdoor event venues, and any large-area cooling or irrigation project.

As the flagship model in the Mistello range, the FG-700 delivers maximum output and coverage for the most demanding cooling and misting applications.

Ships nationwide across South Africa. Trade and wholesale pricing available for approved dealers.
