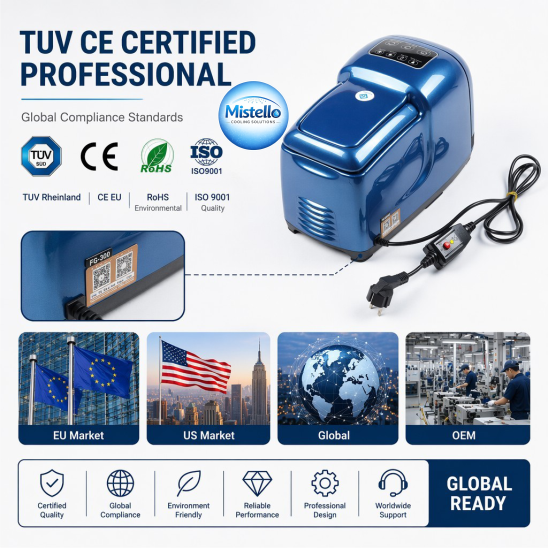

Mistello FG-300 High Pressure Misting Pump

The Mistello FG-300 is a professional-grade high pressure misting pump built for large-scale outdoor cooling, evaporative comfort, and dust control across areas of up to 200 m². At its core is a pioneering triple-plunger pump design with full anti-corrosion coating for permanent rust resistance, sealed with fluorine and hydrogenated rubber for 1,500–2,500 hours of maintenance-free performance.

Powered by a 311V DC brushless motor (500W, 1700 RPM), this high pressure misting pump delivers a strong 3.0 L/min water flow at up to 70 Bar / 1000 PSI. The glass touch panel offers Phone App and remote key control, with an external interface ready for humidity sensors or smart home integration. An integrated 80 Bar anti-drip solenoid valve and anti-drip nozzles ensure a true zero-drip design — no dripping, no wet surfaces.

Key Features:

• Pioneering triple-plunger pump — permanent rust resistance, 1,500–2,500 hour lifespan
• 311V DC brushless motor, 500W, 1700 RPM
• Max pressure: 70 Bar / 1000 PSI | Water flow: 3.0 L/min
• Glass touchscreen with Phone App and remote key control
• 80 Bar anti-drip solenoid valve — true zero-drip design
• Operating noise: 60 dB at full pressure
• Full safety protection: water shortage cutoff, electrical leakage protection, motor overwork/overheat protection, oil change reminder
• Covers 50–200 m² depending on nozzle setup
• 50 anti-drip mist nozzles with Viton seals (0.20mm orifice)
• Quick-fit installation — set up in around 30 minutes, no professional help needed
• Complete plug-and-play kit

Power Supply: 110/220V, 50-60Hz — compatible with South African power standards.

What’s in the Box:

• 1 × Main pump unit (3-piston aircraft-grade aluminium pump, glass IP67 touchscreen, mobile app control (11 languages), 8 MPa anti-drip solenoid valve, water-lacking warning + auto stop)
• 1 × Inlet water system (10mm×7mm polyethylene pipe, 1.5m + machine/filter connectors)
• 1 × High-quality SS304 water filter
• 1 × 100% brass nickel-plated filter head
• 1 × Secondary inlet pipe (12mm×8mm polyethylene, 1.5m + faucet connectors)
• 50 × Anti-drip mist nozzles (SS304 filter, Viton seals, 0.20mm orifice)
• 49 × Quick fittings (1/4″, brass with nickel plating)
• 1 × End fitting (1/4″, brass with nickel plating)
• 3 × L-type connectors (brass with nickel plating)
• 1 × Quick fitting (machine-to-pipe connector)
• 60 metres × Nylon (PA12) high-pressure pipe (max 80 Bar, 6.35mm/1/4″)
• 1 × Pipe cutter (20cm/9cm, high-level manganese steel blade)
• 50 × Pipe hangers (1/4″ SS304 material + natural rubber)
• 1 × Pump oil syringe
• 1 × User manual (full-colour printed, plastic film cover)
• 1 set × O-rings (free, for emergency leakage repair)
• 1 × Carton package (very strong, no logo, rated to 80kg)

Optional Upgrades Available:

• SS304 full pipe set upgrade (higher pressure rating)
• Low-pressure solenoid valve add-on (for inlet water)
• Remote key and humidity sensors (optional add-ons)

Ideal Applications:
Large patios and pergolas, restaurants and hospitality venues, farms and livestock cooling, warehouses and factories, greenhouses and nurseries, event tents, and industrial dust suppression.

Built with corrosion-resistant materials suitable even for disinfection use, this high pressure misting pump delivers dealer-grade performance for the largest outdoor spaces.

Ships nationwide across South Africa. Trade and wholesale pricing available for approved dealers.
