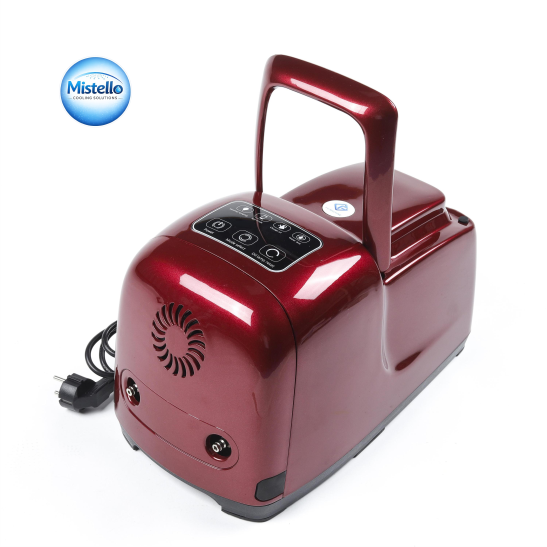

Mistello FG-200 Misting System – App-Controlled High-Pressure Cooling Kit

The Mistello FG-200 is a professional-grade high pressure misting pump built for large-scale outdoor cooling, evaporative comfort, and dust control. At its core is a pioneering triple-plunger pump design — the world’s first of its kind — with a full anti-corrosion coating for permanent rust resistance, sealed with fluorine and hydrogenated rubber for 1,500–4,000+ hours (up to 5 years) of maintenance-free performance.

Delivering up to 70 Bar / 1000 PSI at a water flow of 2.0–2.4 L/min, this high pressure misting pump covers 30–150 m² and is ideal for patios, restaurants, greenhouses, farms, warehouses, and residential outdoor areas.

The system features a glass IP67 touchscreen control panel with Phone App control, giving you full remote access to spray cycles, timers, and maintenance alerts from your smartphone — plus an external interface ready for humidity sensors or smart home integration. An integrated 80 Bar anti-drip solenoid valve and anti-drip nozzles deliver a true zero-drip design, so there’s no dripping and no wet surfaces when the system is idle.

Key Features:

• Pioneering triple-plunger pump — permanent rust resistance, 1,500–4,000+ hour lifespan
• 250W motor, 3-piston aircraft-grade aluminium pump, 1400/1680 RPM (50Hz/60Hz)
• Max pressure: 70 Bar / 1000 PSI | Water flow: 2.0–2.4 L/min
• Glass IP67 touchscreen with Phone App and remote key control
• 80 Bar anti-drip solenoid valve — true zero-drip design
• Ultra-quiet operation: 58 dB at full pressure
• Full safety protection: water shortage cutoff, electrical leakage protection, motor overwork/overheat protection, oil change reminder
• Covers 30–150 m² depending on nozzle setup
• 50 anti-drip mist nozzles with Viton seals (0.15mm orifice)
• 60 metres of Nylon PA12 high-pressure pipe included
• Quick-fit installation — set up in around 30 minutes, no professional help needed
• Complete plug-and-play kit — everything included

⚠️ Power requirement: The FG-200 operates on 220V AC only (unlike the FG-100/150/300, which support 110–240V 50-60Hz). Please confirm your local power supply before ordering.

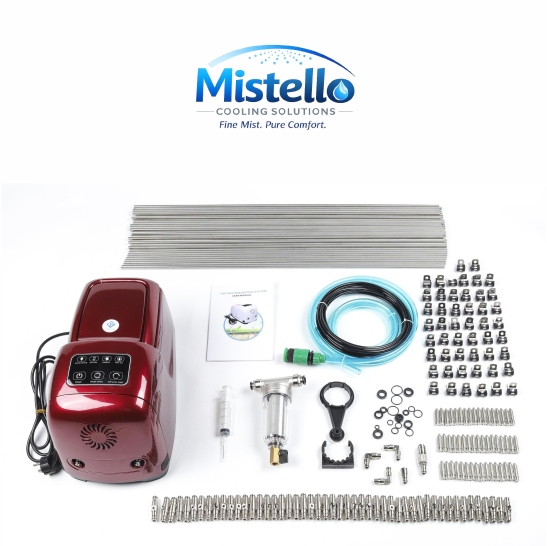

What’s in the Box:

• 1 × Main pump unit (3-piston aircraft-grade aluminium pump, integrated 8 MPa anti-drip solenoid valve, glass IP67 touchscreen, mobile app control)
• 1 × Inlet water system (10mm×7mm polyethylene pipe, 1.5m + machine/filter connectors)
• 1 × High-quality SS304 water filter
• 1 × 100% brass nickel-plated filter head
• 1 × Secondary inlet pipe (12mm×8mm polyethylene, 1.5m + faucet connectors)
• 50 × Anti-drip mist nozzles (SS304 filter, Viton seals, 0.15mm orifice)
• 49 × Quick fittings (1/4″, brass with nickel plating)
• 1 × End fitting (1/4″, brass with nickel plating)
• 3 × L-type connectors (brass with nickel plating)
• 1 × Quick fitting (machine-to-pipe connector)
• 60 metres × Nylon (PA12) high-pressure pipe (max 80 Bar, 6.35mm/1/4″)
• 1 × Pipe cutter (20cm/9cm, high-level manganese steel blade)
• 50 × Pipe hangers (1/4″ SS304 material + natural rubber)
• 1 × Pump oil syringe
• 1 × User manual (full-colour printed, plastic film cover)
• 1 set × O-rings (free, for emergency leakage repair)
• 1 × Carton package (very strong, no logo, rated to 80kg)

Optional Upgrades Available:

• SS304 full pipe set upgrade (100 Bar rated)
• Low-pressure solenoid valve add-on (prevents faucet backflow drip)
• Remote key control for on/off operation

Ideal Applications:
Large patios and pergolas, restaurants and hospitality venues, gardens and greenhouses, warehouses and factories, livestock and poultry cooling, event tents, and residential outdoor comfort misting.

Built for demanding commercial use and large outdoor spaces, this high pressure misting pump delivers dealer-grade performance with smart, app-controlled convenience.

Ships nationwide across South Africa. Trade and wholesale pricing available for approved dealers.
