Mistello FG-050-S High Pressure Misting Pump | 70 Bar Kit

The Mistello FG-050-S is a premium high pressure misting pump built for advanced smart outdoor cooling. Delivering an ultra-fine 0.10 mm mist at 70 Bar / 1000 PSI, this high pressure misting pump provides fast evaporative cooling, dust control, and consistent mist quality for patios, pergolas, greenhouses, restaurants, and workshops.

Powered by a 150W 12V brushless DC servo motor and a patented 3-piston aircraft-grade aluminium pump, the FG-050-S delivers stable, long-lasting output with ultra-quiet operation (~55 dB). Its IP67 waterproof smart control panel automatically adjusts RPM based on nozzle count, while the 80 Bar anti-drip solenoid valve keeps water waste to a minimum.

Key Features:

• 70 Bar / 1000 PSI output — a powerful, professional-grade high pressure misting pump
• 150W 12V brushless DC servo motor with patented 3-piston aluminium pump
• Ultra-fine 0.10 mm anti-drip nozzles with Viton seals (14 included)
• IP67 waterproof smart control with 30 m remote key
• 80 Bar anti-drip solenoid valve for water efficiency
• Automatic RPM adjustment and maintenance reminder lamp
• Complete plug-and-play kit — everything included

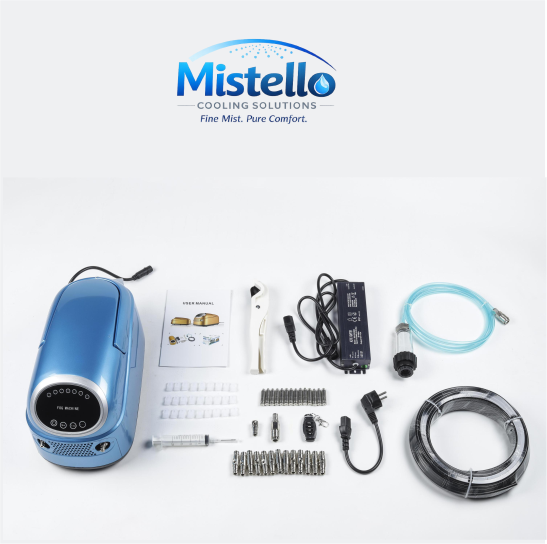

What’s in the Box:

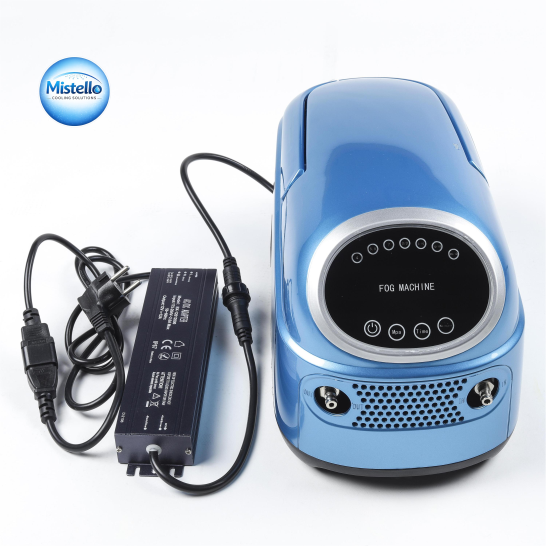

• 1 × Main misting pump unit (150W, 12V DC brushless servo motor, 3-piston aircraft-grade aluminium pump, 70 Bar/1000 PSI)
• 1 × IP67 waterproof transformer/control panel (150W)
• 1 × Inlet water system (2m polyether pipe + tap/faucet connector + plastic water filter)
• 14 × Anti-drip mist nozzles (SS304, Viton seals, 0.10mm orifice)
• 13 × Quick fittings (1/4″, brass with nickel plating)
• 1 × End fitting (1/4″)
• 1 × Quick fitting (machine-to-pipe connector)
• 20 metres × Nylon (PA) high-pressure pipe (6.35mm / 1/4″)
• 28 × Pipe hangers (SS304)
• 1 × Remote key (up to 30m range, touch-operated pressure control)
• 1 × Pipe cutter (20cm, high-level manganese steel blade)
• 1 × Pump oil syringe
• 1 × User manual (full-colour printed, plastic film cover)
• 1 × Carton packaging (5-layer, waterproof)

Ideal Applications:
Premium patios, pergolas, restaurants, hospitality venues, greenhouses, workshops, warehouses, and industrial dust suppression or cooling zones.

Built for demanding commercial use as well as residential comfort, this high pressure misting pump offers dealer-grade performance in a complete, ready-to-install kit.

Ships nationwide across South Africa. Trade and wholesale pricing available for approved dealers.
